High frequency sealing machine
Specification:

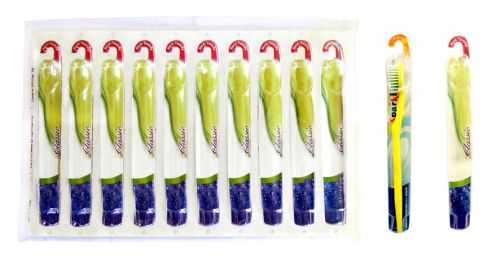

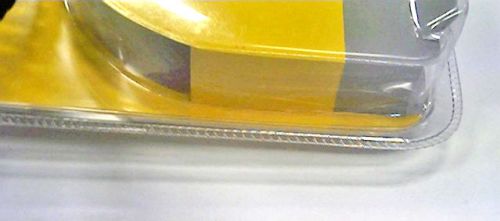

It fit for PVC + PVC or GPET + GPET blister seal and cutting.
The material content PVC over thirty percent, genuine leather, cotton material PU, TPU, EVA, PET fit for this machine.
| Model | PWN-3000FA | PWN-4000FA | PWN-5000FA | PWN-6000FA | PWN-8000FA |
| Type of operation | Pneumatic | ||||
| H.F. out-put Power | 3 KW | 4 KW | 5 KW | 6 KW | 8 KW |
| Input power | 5 KVA | 6.5 KVA | 8.5 KVA | 10 KVA | 15 KVA |
| Oscillation frequency | 40.68 MHZ | 27.12 MHZ | |||
| Oscillation tube | E3062TV | E3062TV | 7T85RB | 7T69RB | 7T69RB |
| Power supply | AC 220/380/400/415/440V 3Dia./1Dia.Voltage to be arranged at instruction. | ||||
| Rectifier | Silicon Diode | ||||
| Max gap of electrodes | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Press stroke | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Max pressure | 200 kg / cm² | 200 kg / cm² | 300 kg / cm² | 300 kg / cm² | 300 kg / cm² |
| Lower electrode size | 350 × 700 mm | 350 × 700 mm / 400 × 800 mm | |||
| Net weight | 270 kg | 300 kg | 400 kg | 450 kg | 500 kg |
| Gross weight with packing | 370 kg | 400 kg | 500 kg | 550 kg | 600 kg |
| Mechanical dimension | 170 × 125 × 160 cm | 185 × 130 × 165 cm | |||
If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw
Thank you.
